mini loader machine for landscaping business

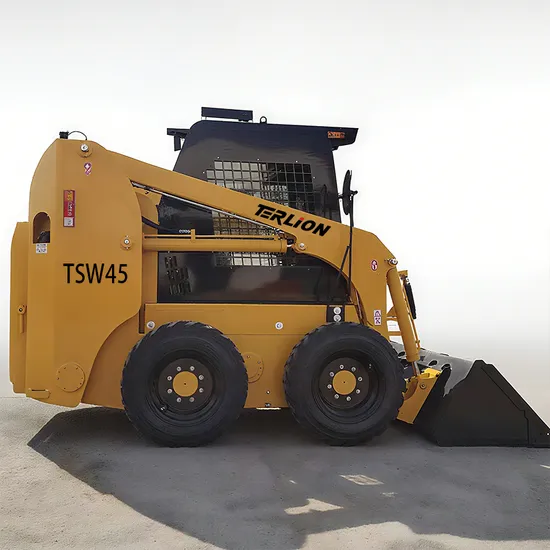

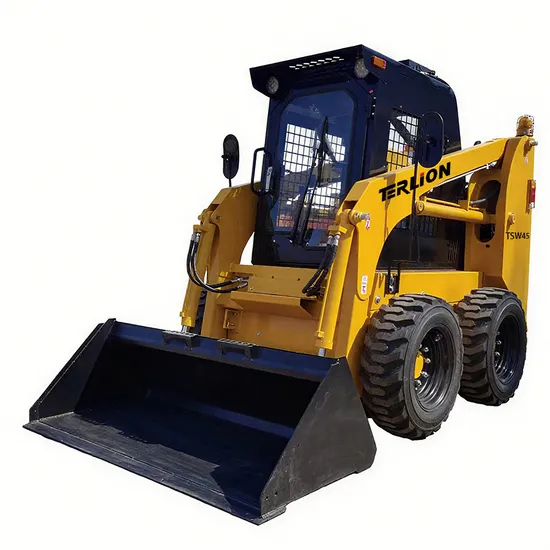

Skid Steer Loader with Export Engine Suitable for Farm and Municipal Use
| US$6,000.00-12,000.00 | 5 Pieces (MOQ) |
Product Details
| Customization: | Available |
|---|---|
| After-sales Service: | One Year |
| Warranty: | One Year |
Shipping
| Shipping Cost: |
US$ 70119.91 to United Arab Emirates by
|
|---|---|
| Delivery: | Estimated delivery time 7-10 Days |
Payment Guarantee
| Payment Methods: |
|
|---|---|
| Support payments in USD |
| Refund policy: | Claim a refund if your order doesn’t ship, is missing, or arrives with product issues. |
|---|
Product Description


Main Promoted Product
| Performance | Model | TSW45 |
| Operating weight(kg) | 3000 | |
| Rated load(kg) | 700 | |
| Bucket capacity(m³) | 0.4 | |
| Max Speed(km/h) | 12 | |
| Max traction(kN) | ≥25.40 | |
| Max breakout(kN) | ≥18.4 | |
| Lifting time of boom(s) | 7 | |
| Rated flux (L/min) | 62.5 | |
| Tire(track) model | 10-16.5 | |
| Fuel tank capacity (L) | 70 | |
| Max Speed(km/h) | 11 | |
| Engine | Model | C490BPG |
| Rated power (kW/rpm) | 36.7/2650 | |
| Engine displacement(L) | 2.27 | |
| Dimension | Overall operating height (mm) | 3980 |
| Height to bucket hinge pin (mm) | 3080 | |
| Height to top of cab (mm) | 2140 | |
| Height to bottom of level bucket(mm) | 2913 | |
| Without bucket length(mm) | 2640 | |
| Overall length with bucket(mm) | 3420 | |
| Dumping angle at maximum height(°) | 40 | |
| Dumping height(mm) | 2380 | |
| Dumping reach(mm) | 700 | |
| Rollback of bucket on ground(°) | 30 | |
| Rollback of bucket at full height(°) | 104 | |
| Wheelbase(mm) | 991 | |
| Ground clearance(mm) | 185 | |
| Angle of departure(°) | 20 | |
| Front turning radius without bucket(mm) | 1300 | |
| Front tuning radius(mm) | 2290 | |
| Rear tuning radius(mm) | 1440 | |
| Rear axle to bumper (mm) | 1080 | |
| Tread width (mm) | 1450 | |
| Width (mm) | 1720 | |
| Bucket width (mm) | 1740 |
Installation Instructions
Apparatus
One machine unlocks multiple functions with versatile capabilities. The sliding loader, with its compact body, revolutionizes the traditional operation mode – the detachable accessory system enables seamless switching between cleaning, crushing, grasping, drilling, etc. It takes only 10 minutes to complete the role transformation. With one device, 90% of the project requirements can be met, eliminating the cost of idle equipment. The lightweight design combined with low-energy power consumption results in a 30% reduction in fuel consumption, halving the labor cost. It can freely navigate through narrow alleys and complex terrains. It is suitable for all scenarios from municipal construction to agricultural and forestry ranches, making every investment yield double profits. Truly achieving the goal of leveraging small equipment to generate substantial returns!
One machine unlocks multiple functions with versatile capabilities. The sliding loader, with its compact body, revolutionizes the traditional operation mode – the detachable accessory system enables seamless switching between cleaning, crushing, grasping, drilling, etc. It takes only 10 minutes to complete the role transformation. With one device, 90% of the project requirements can be met, eliminating the cost of idle equipment. The lightweight design combined with low-energy power consumption results in a 30% reduction in fuel consumption, halving the labor cost. It can freely navigate through narrow alleys and complex terrains. It is suitable for all scenarios from municipal construction to agricultural and forestry ranches, making every investment yield double profits. Truly achieving the goal of leveraging small equipment to generate substantial returns!
