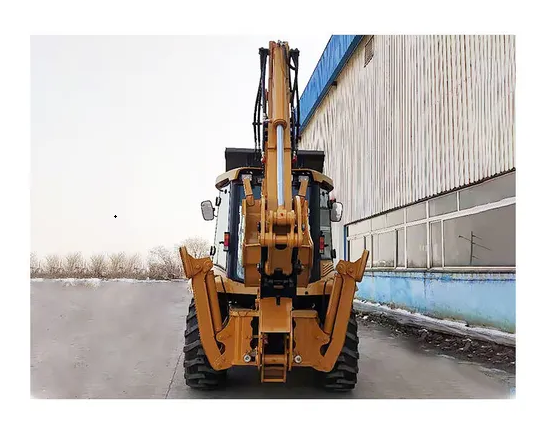

Wholesale Backhoe Loader Excavator Farm Tractor with Loader and Backhoe Mini Loader Excavator

US$45,000.00 1-2 set

US$44,000.00 3+ set

Product Details

Customization:	Available
After-sales Service:	Provide
Warranty:	1year

Shipping

Shipping Cost:	Contact the supplier about freight and estimated delivery time.

Payment Guarantee

Payment Methods:
	Support payments in USD

Refund policy:	Claim a refund if your order doesn’t ship, is missing, or arrives with product issues.

Overall Operating Weight	8200KG	Steering System
Transport Dimension		Diverter Model	BZZ5-250
LWH	6150×2250×3630mm	Steering Angle	±36°
Wheel base	2264 mm	Min. Turning radius	6581mm
Min. Ground Clearance	300 mm	System pressure	12Mpa
Bucket Capacity	1.0 m3	Axle
Breakout Force	38 KN	Manufacturer	Italy Carraro
Loading Lifting Capacity	2500 KG	Rated dynamic / static load of front axle	9 T / 22.5T
Dumping Height	2650 mm	Rated dynamic / static load of rear axle	7.5 / 18.75 T
Dumping reach	1025 mm	Transmission
Loading cutting depth	52 mm	Gearbox
Backhoe Capacity	0.3 m3	Model	TLB1-4WD
Backhoe Capacity	0.3 m3	Type	Fixed Shaft Powershift Electric control
Max. Digging Depth	4082mm	Tyre
Digging slewing angle	190o	Front / Rear model	14-17.5/19.5L-24
Max. Pulling Force	39KN	Air Pressure of Front tire	0.55 Mpa
Engine		Air Pressure of Rear tire	0.23 Mpa
Model	DEUTZ WP4G95E221	Brake System
Type	inline,direct injection , water cooled , turbochared, 4-stroke	Service Brake	Wet, Internal,
Type		Service Brake	Self-regulation, Self-balance
Cylinder inner Diameter Stroke	4-105×130	Parking Emergency Brake	Spring brake / Hydraulic terminating brake
Rated Power	70KW	Travel speed	38 km/h
Rated Speed	2200r/min	Hydraulic System
Min. Fuel Consumption	≤230g/km.h	Bucket Digging Power	46.5KN
Max.Torque	380 N.m / 1400-1600 rpm	Digging Power of Dipper	31KN
Displacement	4.5L	Total cycling time	11.9 ± 0.15 s

What are the advantages of your brand?
We manufacture our products locally, using top-quality materials and parts sourced from the finest suppliers in China. Our design team collaborates closely with customers to accommodate any customized orders, ensuring satisfaction and precision.
How do I choose the right backhoe loader?
Choosing the right backhoe loader depends on the specific tasks the machine will perform. Key considerations include the following specifications of the backhoe loader:
. Maximum digging depth
. Bucket capacity
. Horsepower
. Operating weight
Can you supply backhoe loader attachments?
We can work with T/T bank transfer and 100% irrevocable L/C. For detailed terms, please contact our customer representatives directly.
Which payment terms do you accept?
Absolutely, we provides fully functional excavation attachments for your backhoe loader.
What about the warranty time?
We can work with T/T bank transfer and 100% irrevocable L/C.
What about the delivery time?
Our delivery time ranges from 7 to 30 days after receiving the deposit.
