Strong Power Farm Tractor High Land Use From 85HP to 150HP Td Chassis with 4 and 6 Cylinders Diesel Engine
Strong Power Farm Tractor High Land Use From 85HP to 150HP Td Chassis with 4 and 6 Cylinders Diesel Engine
US$19,600.00 5-9 Pieces
US$19,000.00 10+ Pieces
Product Details
| Customization: | Available |
|---|---|
| After-sales Service: | Online Support |
| Type: | Rotary Tiller |
Product Description
strong power farm tractor high land use from 85hp to 150hp TD chassis with 4 and 6 cylinders diesel engine
TD Chassis Tractor is Big and Heavy Tractor. We use TD Chassis to Manufacture Tractor From 85Hp to 150Hp Tractor. Following is our TD chassis 110 horse power tractor with A/C Cabin model. This kind tractor has big size tire. We also install TZ-10 Model Front End Loader in it. The loader can help tractor to realize the functions of loading, unloading, shoveling and digging. Following is the tractor and front end loader configuration, please check.
LIFTOR Tractor Features:
1. LIFTOR series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation;
6. Optional Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
7. Hydraulic power steering(4WD) makes it easy to control and reduce the labor strength of operator.
Tractor Parameter:
|
TD series tractor(90hp to 150hp tractor)
|
|||||||
|
Product model
|
HX904
|
HX1004
|
HX1104
|
HX1204
|
HX1304
|
HX1404
|
HX1504
|
|
Wheel drive
|
4×4
|
||||||
|
Dimension
|
L*W*H 4530×2050×2930mm
|
||||||
|
Weight
|
3690-3840kg
|
||||||
|
Front wheel tread
|
1490,1580,1650,1740mm limited adjustable
|
||||||
|
Rear wheel tread
|
1520,1620,1740,1850mm limited adjustable
|
||||||
|
Wheel base
|
2195mm
|
||||||
|
Min land clearence
|
405mm
|
||||||
|
Gear shifts
|
16+8
|
||||||
|
Tire size
|
standard tire:12.4-24/16.9-34, biger tire: 14.9-24/18.4-34
|
||||||
|
Steering gear
|
Hydraulic steering
|
||||||
|
Rear Suspension
|
Three point linkage
|
||||||
|
Engine Specification
|
|||||||
|
Engine model
|
YTO or Weichai
|
||||||
|
Engine type
|
water cooled, vertical, 4 stroke and direct injection
|
||||||
|
Rated power(kw)
|
66.1
|
73.5
|
80.88
|
88.2
|
95.5
|
102.9
|
110.2
|
|
Rated revolution
|
2300/2400 r/min
|
||||||
|
Start way
|
Electric start
|
||||||
|
Transmission
|
4×(2+1)×2 shifts
|
||||||
|
Clutch
|
Double stage clutch, dry friction
|
||||||
|
PTO speed
|
6 splined 540/1000
|
||||||

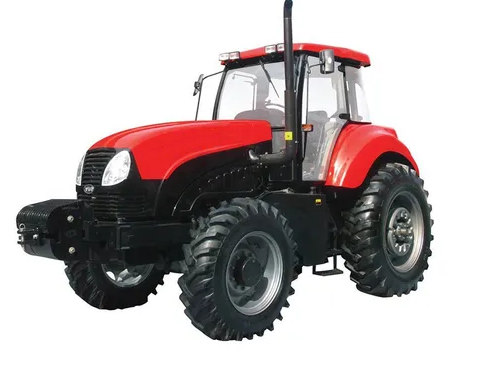

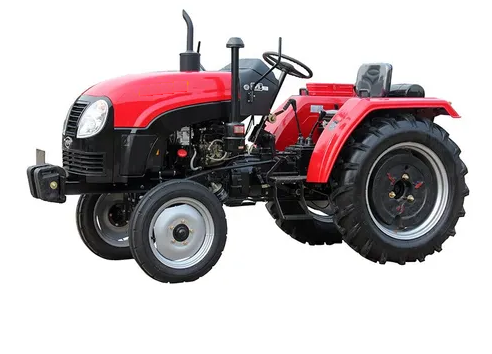

LIFTOR Tractor Pictures:
Optional Implements for Tractor :
Our main equipment are agriculatural tractor, lifting machine, wheel loader and forklift. It is widely used in various places of modern logistics.
