Heavy-Duty Remote Control Pesticide Chemical Irrigation Sprayer Agriculture Uav 72L Payload Agricultural Arm Folding Drone with Large Capacity Water Tank
Heavy-Duty Remote Control Pesticide Chemical Irrigation Sprayer Agriculture Uav 72L Payload Agricultural Arm Folding Drone with Large Capacity Water Tank
US$16,445.00-17,320.00 |
1 Piece (MOQ) |
Product Details
| Customization: | Available |
|---|---|
| Spray Range: | 8-18m |
| After-sales Service: | Online Service |
Shipping
| Shipping Cost: | Contact the supplier about freight and estimated delivery time. |
|---|
Payment Guarantee
| Payment Methods: |
             |
|---|---|
| Support payments in USD |
| Refund policy: | Claim a refund if your order doesn’t ship, is missing, or arrives with product issues. |
|---|
|
Unfolded Size
|
3920*3920*910mm
|
Nozzles
|
High-Pressure Nozzle*16
|
|
Folded Size
|
990*860*2090mm
|
Atomizing Size
|
30-400μm
|
|
Drone Weight
|
57kg
|
Spray Flow Rate
|
16L/min
|
|
Takeoff Weight
|
166kg
|
Spray Width
|
8-18m
|
|
Water Tank
|
72L
|
Spreading Box
|
80kg
|
|
Operating Altitude
|
≤20m
|
Waterproof Grade
|
IP67
|
|
Flight Altitude
|
4000m
|
Granule Size
|
1-10mm
|
|
Hover Time
|
15min (Unloaded)
|
Battery
|
14S 42000mAh*2
|
|
5min (Full Load)
|
Rated Capacity
|
60.9V/40A/2400W
|
|
|
Flight Speed
|
15m/s
|
Battery Weight
|
13.5kg
|
72-Liter 8-Rotor Spraying Drone· Optimal Spraying Performance:
The symmetric 8-Axis design features a large wingspan with high-pressure spraying, covering up to 30 hectares per hour, ensuring optimal spray effectiveness.
· Integrated Flight Control System:
Highly integrated flight control system, rigorously tested with thousands of hours of field flying
· Advanced Radar System:
Integrates obstacle avoidance and terrain detection radar, safeguarding flight and enhancing safety.
· Triple Satellite GPS System:
Offers high-precision positioning with GPS, Beidou, and GLONASS support, ensuring accurate navigation.
Compact Upward-Folding Design

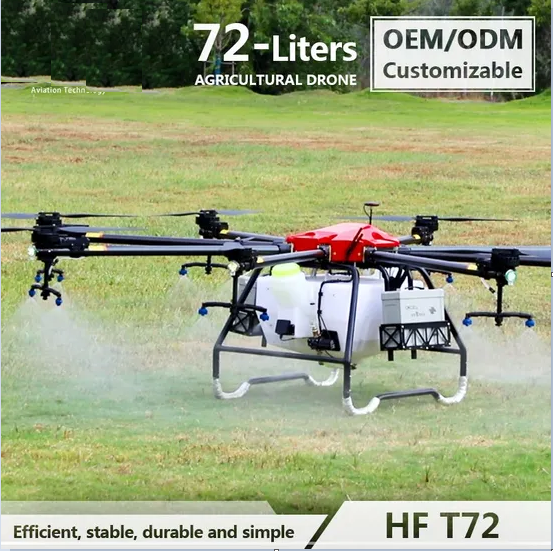

The HF T72 Model features a unique 8-axis upward-folding design, optimizing storage and transportation space. Equipped with a 72L liquid spraying capacity (Upgradable to 82L) and a 80kg solid spreading payload, it’s ideally suited for extensive agricultural management. Since its release in 2017, this drone has demonstrated remarkable stability and durability in diverse markets worldwide, making it a reliable choice for large-scale farming operations.
| Grain Crops | Commercial Crops | Fruit Trees |
| Widely used for cereals like rice, wheat, maize, and barley in Asia and Europe | Including cotton, coffee, rubber, and soybeans in South America and Africa | Such as apples, grapes, cherries, and citrus fruits in Europe, North America, and Oceania |
Highly Integrated Intelligent Flight Control System
The flight control system integrates an advanced feature set to optimize performance and enhance operational efficiency for users.
| Smart Flight Control | Intelligent Operation Control | Flight Assistance Features |
| – Stability and Maneuvering – Navigation and Positioning – Intelligent Route Planning – Fully Automatic Flight – AB Point Flight – Manual Flight |
– Obstacle Avoidance – Terrain Following – Breakpoint Resumption – Low Battery Alarm – Empty Tank Warning – One-Key Return to Home |
– HD FPV Camera – Night Flight Mode – Data Cloud Storage – HD Video Transmission – Real-Time Data Transmission – RTK Base Station Support |
Product Features
Boasting stability, dual spray and spread functionality, and strong penetration, with added adaptability for transport tasks.
| Rigorously Tested Flight Stability | Spraying & Spreading Dual System | Powerful Spray Penetration | Versatile Transport Capabilities |
| Optimized with tens of thousands of flight hours to guarantee unmatched stability and reliability. | The T72 model features a seamless transition between spraying and spreading, eliminating the need for tank replacement by simply changing the bottom cover. Equipped with a 72L spraying tank (which can be upgraded to 82L) and 16 high-pressure nozzles, it ensures effective pesticide spraying. For solid spreading, it has an 80 kg capacity tank and can finish spread work in 1-2 minutes. | The T72 model features robust spray penetration, essential for effectively treating fruit trees and crops with dense canopies, ensuring deep liquid deposition to lower plant sections facilitated by its powerful downdraft wind field. | The T72 drone, with a 80kg payload capacity, can transport goods across farmlands, enabling short-distance deliveries and material supply in challenging terrains, showcasing its remarkable versatility in load handling. |
Route Planning
Drone route planning operates in three modes: Plot, Sweep, and Fruiter.
Drone route planning operates in three modes: Plot, Sweep, and Fruiter.
| Plot | Sweep | Fruit |
Operating Modes
Three operating modes: Fully automatic, AB point, Manual.
Three operating modes: Fully automatic, AB point, Manual.
| Fully Automatic | AB Point | Manual |
User-friendly Design
| Autonomous Obstacle Avoidance | Terrain Following Flight Mode | 1080P FPV Camera |
| The front and rear obstacle avoidance radar offering precise detection of obstacles, significantly enhances flight safety. | Terrain Following Radar allows for adaptive flight in varied landscapes, maintaining a consistent altitude, enhancing safety and precision. | HD FPV camera offers clear, real-time aerial views for precise drone navigation. |
| Breakpoint Resumption Spraying | Upgradable to Centrifugal Nozzles | Night Flight Mode |
| Breakpoint resumption spraying ensures precise resumption and coverage efficiency after interruption. | High-pressure atomizing nozzles have strong penetration, while centrifugal nozzles offer better atomization effects and finer droplets. | Night Flight Mode ensures safe, effective night-time operations, enhancing visibility and navigation. |
Power System
Equipped with two intelligent lithium batteries and an intelligent dual-channel charger, the drone is designed for rapid charging and continuous operation.
Equipped with two intelligent lithium batteries and an intelligent dual-channel charger, the drone is designed for rapid charging and continuous operation.
| Charging and Discharging | Anti-collision | Auto Internal Balancing |
| Unlimited charging and discharging times within one year. | Anti-collision, shockproof, anti-penetration, and over-temperature protection. | Automatic internal balancing of battery voltage for optimal performance. |
| Intelligent Charger | Intelligent Battery | ||
| Model | 14S 42000mAh*2 | Charge Input |
110V-240V 2400w
|
| Rated Capacity | 60.9V/40A | Charge Output | 40A (single channel charging) |
| Size | 175*110*290mm | Rated Power | 2400w |
| Weight | 13.5kg | ||
| Charging Ambient Temperature | -40ºC~ 65ºC | ||
Package Options
Select the Standard Kit for essential spraying needs, or upgrade to the Enhanced Kit for additional advanced features.
| Production, assembly | Testing | Packaging (customized boxing method available) |
Loading and shipping |
Related products
-

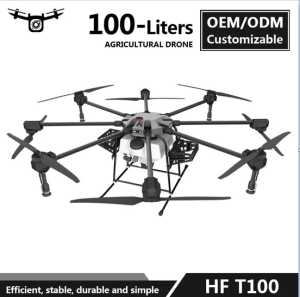

100liter 8 Axis Heavy Load Foldable Agriculture Crop Spraying Agro Drone Intelligent Multi-Function Farming Plant Protection Brushless Pump Drone
-
Smartagriculture Drone Agricultural Drone Sprayer Uav Crop Sprayer Foldable Frame Heavy Load
-
Heavy Load Capacity Agricultural Crop Protection Farm Sprayer Crop Spraying Drone
-

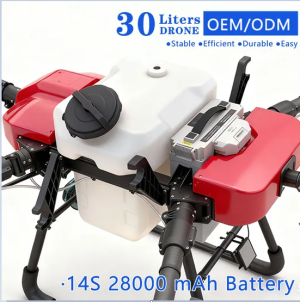

Buy 30 Liters Large Capacity AG Drone Price Drones for Agriculture Heavy Duty Seed Fertilizer Spread Sow Big Load Drone Crop Sprayer Pesticide Spraying
