Dust Suppression Mist Cannon Smart Farm Spraying System with Variable Speed Fan Control

Principle and Function:
Mist cannon atomizes water into ultra-fine droplets (30-150 microns) that are similar in size to dust particles. When the mist is sprayed by the high-power fan, the droplets fully contact and adhere to floating dust in the air, forming larger aggregates. These aggregates then settle naturally due to gravity, effectively reducing airborne dust concentration and purifying the ambient air.

Application Features:

High dust suppression efficiency, capable of capturing both large and fine dust particles (PM2.5, PM10). Water-saving and energy-efficient, with adjustable spray range and angle to target specific dust sources. The mist is non-corrosive and non-wetting to equipment or materials, ensuring safe operation. No chemical additives required, making it environmentally friendly.
Applicable Scenarios:
Ideal for dusty industrial and construction sites such as coal yards, mines, quarries, cement plants, and demolition sites. Also suitable for port terminals, railway freight yards, waste incineration plants, and urban road construction areas requiring dust control.

After Sales Service

One-year warranty, lifetime maintenance

1. Before leaving the factory, fog cannon undergo rigorous testing to verify that water pipelines are intact, spray performance meets standards, and operational noise complies with national regulations.
2. For overseas shipments, an additional layer of anti-corrosion paint is applied to the exterior due to extended transit times.

3. We will ship extra fragile equipment during delivery to facilitate future replacements. We use well-known brand motors for easy local procurement and replacement.
4. Should any issues arise, our customer service team is available 24/7 to assist you.

Scenario Case

Dust Suppression

Odor Control

Cooling

Fog cannon is suitable for dust scenes such as construction sites, mines, sand plants and roads. It uses high-pressure atomized water mist to adsorb dust particles in the air, make them condense and settle, quickly inhibit dust diffusion, efficiently control dust pollution, improve on-site working environment and reduce dust harm to personnel and equipment, being a core environmental protection equipment for dust suppression.

Water cannon is suitable for odor places such as garbage dumps, farms and chemical zones. Adding deodorant into water, the atomized fog mass can cover odor areas in a large area, decompose and neutralize odor molecules in the air, quickly eliminate harmful odor, inhibit odor diffusion, effectively purify air and improve regional odor pollution from the root.

Mist cannon is suitable for high-temperature environments such as high-temperature workshops, open-air construction sites and outdoor squares. It achieves physical cooling through evaporation and heat absorption of atomized water mist, rapidly reduces ambient temperature, increases air humidity, relieves high temperature and dryness, improves comfort of operation and activity environment, with no chemical additives, green environmental protection and remarkable cooling and humidification effect.

Product Details

Model	ZT-60	Range Meters(m)	55-60
Coverage Area(m²)	10900	Water Discharge(L/min)	25-50
Aerosol Particles(μm)	30-150	Number of nozzles	36-60
Noise at 20 meters (dB)	≤70	Power(kW)	22.5

Fog Cannon System Components

Gun barrel: Laser full-weld process, conical/tapered-straight integrated design
Water passage: Nozzles and water rings made of 304 stainless steel
Pump: Vortex pump, plunger pump, stainless steel multistage centrifugal pump
Fan motor: B5 mounting configuration
Elevation mechanism: Electric actuator, hydraulic actuator
Rotation mechanism: Slewing bearing, worm gear reducer motor
Plate material: 5mm thick plate

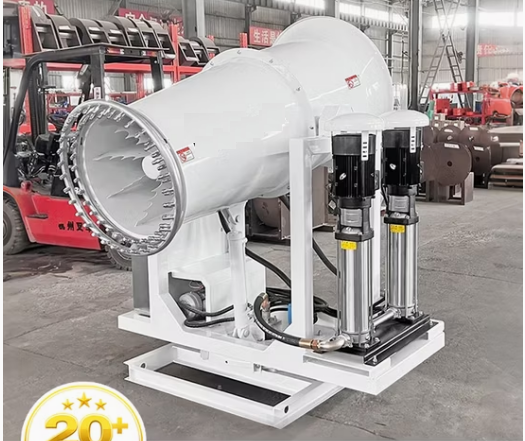

Fog Cannon Pictures

Packing & Delivery

Shipping and Transportation

All fog cannon machines are packed with reinforced export-special packaging. The whole machine is covered with waterproof and dust-proof film + shockproof bubble cotton, vulnerable parts are protected in individual boxes, and the outside is equipped with sturdy multi-layer plywood export wooden cases which are firm and not easy to deform, with excellent moisture-proof, shock-resistant and anti-damage performance. Packaging strictly follows international logistics norms, all wooden packages are fumigation-free plates meeting quarantine standards of all countries for smooth customs clearance. The packaging fully protects the equipment from damage during long-distance sea and cross-border land transportation, ensures intact delivery and meets transportation and storage needs of overseas customers worldwide.
