50-70HP Tractor Fertilizer Spreader/Traction Manure Spreader/Organic and Lime Fertilizer Spreader/ Agriculture ATV Tractor Fertilizer Spreader Dfc7500
50-70HP Tractor Fertilizer Spreader/Traction Manure Spreader/Organic and Lime Fertilizer Spreader/ Agriculture ATV Tractor Fertilizer Spreader Dfc7500 ( Contact Us)
US$6,200.00-17,000.00 |
1 Set (MOQ) |
Product Details
| Customization: | Available |
|---|---|
| After-sales Service: | 1-3 Years |
| Application: | Wheat, Rice, Corn, Peanut, Tubers, Beans, Trees, Fruit, Fertilizer |
Sold to the world
Versatile, Easy, Affordable, Powerful, Reliable
Versatile, Easy, Affordable, Powerful, Reliable
Manure spreader product description
2FS series double-disc solid organic fertilizer spreading vehicle Product Description
2FS series double-disc solid organic fertilizer spreading vehicle works with tractors. It is a multi-functional fertilizer spreading machine. It is mainly suitable for fertilizing various farms and pastures before ploughing. It can be used for manure in fields, grasslands, pastures, roads, etc. Throwing of different forms of solid materials such as manure, organic fertilizer, lime, distiller’s grains, sugar residue, and granular fertilizer.
The fertilizer spreader comes with hydraulic oil tank, and the loading volume can be customized. The whole machine is mainly composed of traction frame, frame welding, fertilizer tank, hydraulic oil tank, hydraulic system, transmission device, fertilizer delivery device, fertilizer device, ground wheel mechanism And other components. The machine uses the tractor’s rear power output as the power, drives the body’s own hydraulic system to drive the hydraulic motor to work, and conveys the fertilizer backwards through the fertilizer feeding device, and the rear drive shaft drives the gear box to realize the rotation of the double spreading discs, thereby realizing fertilizer spreading. This series of fertilizer spreaders have stable performance, uniform and efficient spreading operations, which effectively solves the problems of high fertilizer spreading cost, extensive spreading, serious fertilizer waste, and difficulty in returning organic fertilizer to the field.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia Australia and New Zealand.
The fertilizer spreader comes with hydraulic oil tank, and the loading volume can be customized. The whole machine is mainly composed of traction frame, frame welding, fertilizer tank, hydraulic oil tank, hydraulic system, transmission device, fertilizer delivery device, fertilizer device, ground wheel mechanism And other components. The machine uses the tractor’s rear power output as the power, drives the body’s own hydraulic system to drive the hydraulic motor to work, and conveys the fertilizer backwards through the fertilizer feeding device, and the rear drive shaft drives the gear box to realize the rotation of the double spreading discs, thereby realizing fertilizer spreading. This series of fertilizer spreaders have stable performance, uniform and efficient spreading operations, which effectively solves the problems of high fertilizer spreading cost, extensive spreading, serious fertilizer waste, and difficulty in returning organic fertilizer to the field.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia Australia and New Zealand.
2FS series double-disc solid organic fertilizer spreading vehicle Product Selling Points
1. The built-in hydraulic oil tank solves the problem of unstable hydraulic system or without hydraulic system of small tractors.
2. Reserve a heightening hole, which is convenient for customers to heighten by themselves to increase the loading capacity.
3. It comes with a speed control valve, which can adjust the speed of the fertilizer delivery chain to control the fertilizer output.
4. The double delivery chain delivers uniform and stable fertilizer delivery. It can be multi-functionally used for the application of fine granular fertilizers. (Minimum fertilization amount can reach dozens of catties).
5. There is a manual adjustment handle at the fertilizer door, and the user can adjust the size of the fertilizer outlet according to their needs.
6. All-in-one manure spreading and manure spreading all-in-one machine is equipped with overload protectors to prevent debris such as rocks in the manure from jamming the chain.
7. Five times of sand blasting and shot blasting process for the whole vehicle, which is effective in corrosion resistance and prolongs the service life by at least five years.
2FS series double-disc solid organic fertilizer spreading vehicle Product Technical Parameters
1. The built-in hydraulic oil tank solves the problem of unstable hydraulic system or without hydraulic system of small tractors.
2. Reserve a heightening hole, which is convenient for customers to heighten by themselves to increase the loading capacity.
3. It comes with a speed control valve, which can adjust the speed of the fertilizer delivery chain to control the fertilizer output.
4. The double delivery chain delivers uniform and stable fertilizer delivery. It can be multi-functionally used for the application of fine granular fertilizers. (Minimum fertilization amount can reach dozens of catties).
5. There is a manual adjustment handle at the fertilizer door, and the user can adjust the size of the fertilizer outlet according to their needs.
6. All-in-one manure spreading and manure spreading all-in-one machine is equipped with overload protectors to prevent debris such as rocks in the manure from jamming the chain.
7. Five times of sand blasting and shot blasting process for the whole vehicle, which is effective in corrosion resistance and prolongs the service life by at least five years.
2FS series double-disc solid organic fertilizer spreading vehicle Product Technical Parameters
| Model | 2FS-3 | 2FS-6 | 2FS-9 |
| Volume capacity(m³) | ≥3 | ≥6 | ≥8 |
| Maximum deadweight(kg) | 3000 | 6000 | 7200 |
| Machine weight(KG) | 1600 | 2200 | 2450 |
| Spreading width(M) | 6-14 | 6-14 | 6-14 |
| Machine size (mm) L*W*H | 4100*2010*1900 | 4510*2200*2290 | 5500*2250*2480 |
| Hopper size (mm) L*W*H | 2600*1795*1290 | 3130*2000*1795 | 4000*2000*1640 |
| Fertilizing form | Horizontal double discs are thrown backward | ||
| Number of disc blades | 3 | 3 | 5 |
| Maximum diameter of disk (mm) | 640 | 640 | 620 |
| Traction length (mm) | 1210 | 1210 | 1235 |
| Minimum height from ground (mm) | 380 | 380 | 370 |
| Conveyor chain width (mm) | 405(double row) | 405(double row) | 990 |
| Center distance of tire (mm) | 1700 | 1850 | 1850 |
| Tires | 12.5/80-15.3 | 14-17.5 | 400/55-22.5-18PR |
| Drive way | PTO | PTO | PTO |
| PTO speed(rpm) | 540 | 540 | 540 |
| work efficiency (m³/h ) | ≥10 | ≥10 | ≥10 |
| Required tractor power(hp) | 50-70 | 60-80 | 80-140 |
| Conveying control mode | hydraulic | hydraulic | hydraulic |
| Hydraulic system pressure | 16Mpa | 16Mpa | 16Mpa |
| Hydraulic system flow rate | ≥30LPM | ≥30LPM | ≥30LPM |
| Driving speed (km/h) | 3-20 | 3-20 | 3-20 |
| Working speed (km/h) | ≤10 | ≤10 | ≤10 |
| 40 HQ container | 4pcs(8pcs) | 3pcs | 2pcs+1pcs |

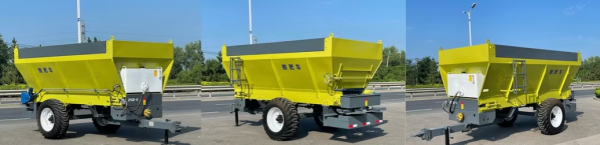

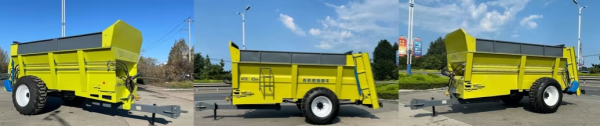

2FS Series manure fertilizer truck picture display
2FGH series Fertilizer Applicator Product Technical Parameters
| Model | 2FGH-10H | 2FGH-10 |
| Volume capacity(m³) | ≥10 | ≥10 |
| Maximum deadweight(kg) | 9500 | 9500 |
| Machine weight(KG) | 3800 | 3800 |
| Spreading width(M) | 3-8 | 3-8 |
| Machine size (mm) L*W*H | 5530*2900*2560 | 5530*2900*2560 |
| Hopper size (mm) L*W*H | 4350*20901620 | 4600*20901620 |
| Fertilizing form | Single twisted dragons are thrown backwards | Vertical twisted-pair dragon is thrown backwards |
| Number of blades per unit | 14 | 27 |
| Diameter of twisted Dragon (mm) | 500 | 760 |
| installation direction | Horizontal level | Vertical installation |
| Traction length (mm) | 1345 | 1530 |
| Minimum height from ground (mm) | 400 | 300 |
| Conveyor chain width (mm) | 1300 | 1300 |
| Center distance of tire (mm) | 2300 | 2300 |
| Tires | 600/50-26.5 | 600/50-26.5 |
| Drive way | PTO | PTO |
| PTO speed(rpm) | 540 | 540 |
| work efficiency (m³/h ) | ≥20 | ≥25 |
| Required tractor power(hp) | 90-160 | 90-180 |
| Conveying control mode | hydraulic | hydraulic |
| Hydraulic system pressure | 16Mpa | 16Mpa |
| Hydraulic system flow rate | ≥60LPM | ≥60LPM |
| Driving speed (km/h) | 3-20 | 3-20 |
| Working speed (km/h) | ≤10 | ≤10 |
| 40 HQ container | 2pcs+1pcs | 2pcs+1pcs |

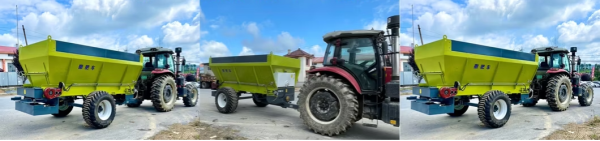

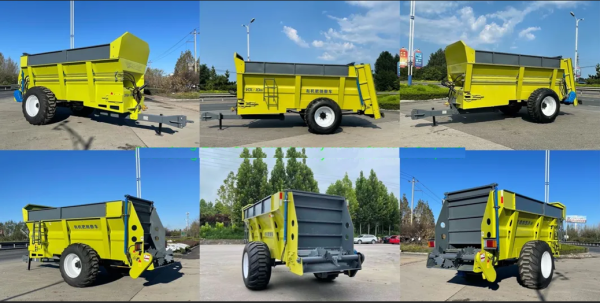

2FGH-10H Series manure fertilizer truck picture display

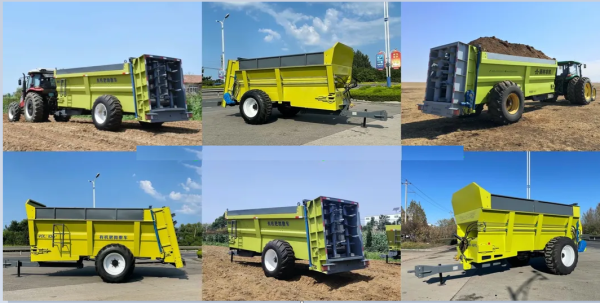

2FGH-10 Series manure fertilizer truck picture display
2FS, 2FGH series manure spreader details display

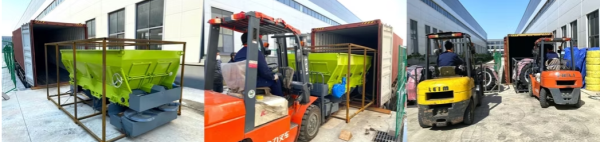

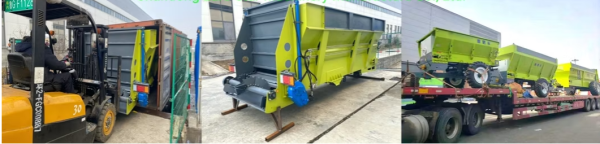

Manure Spreader Packaging and Shipping Site Demonstration

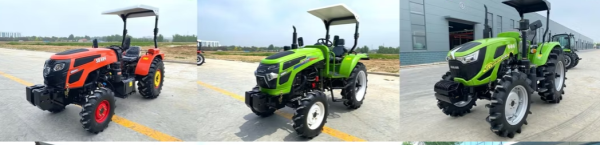

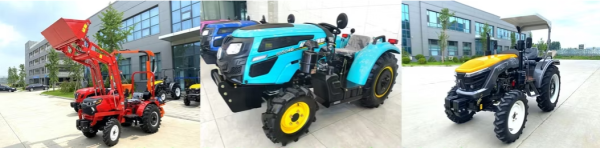

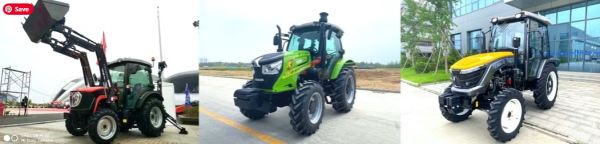

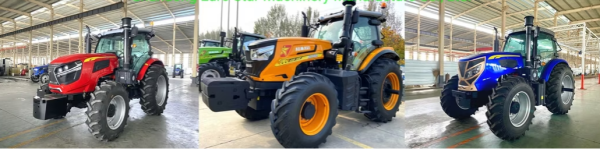

Full range of tractor products display

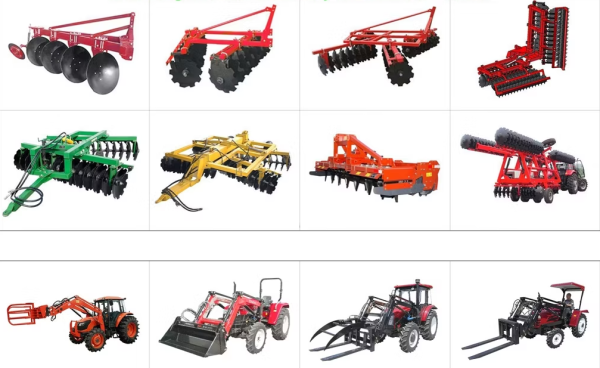

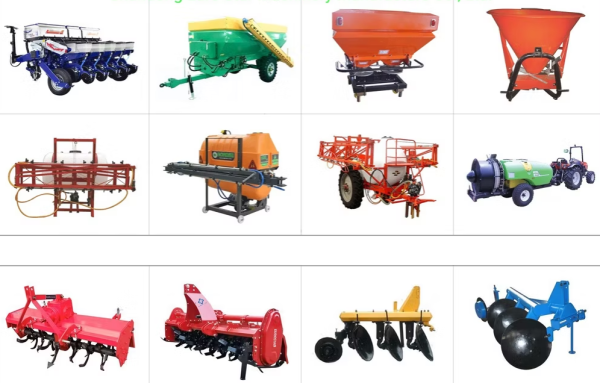

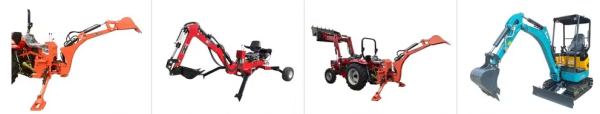

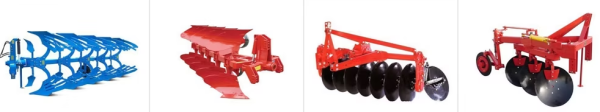

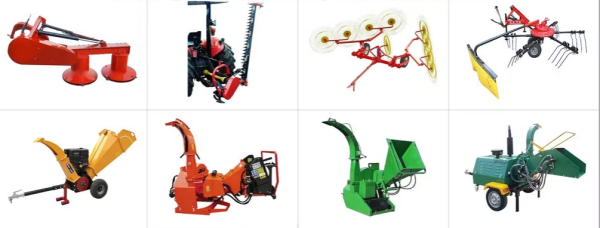

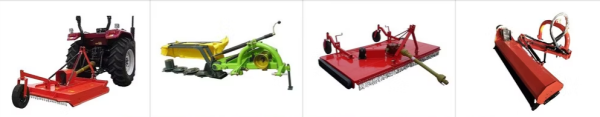

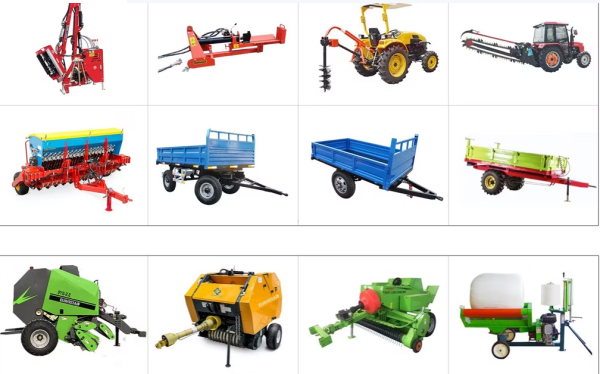

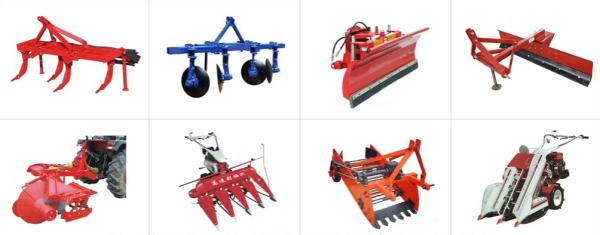

Our company produces other agricultural machinery display
Tractor production workshop display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
—–T/T 30% deposit and balance before shipment
—–100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar’ s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
