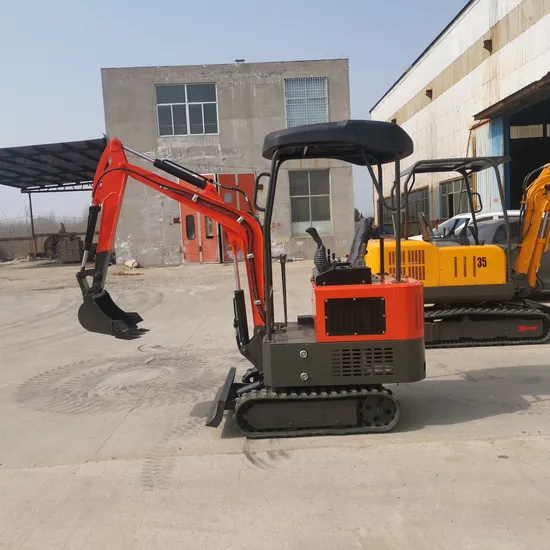

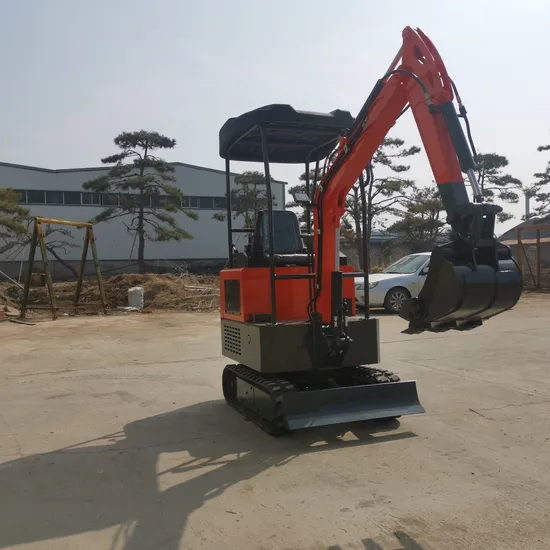

Cheap and High Quality Hixen Farmland Digging Equipment Micro Mini Excavator Towable Backhoe with CE&ISO Certificate for Farm/Garden Use
Product Details
| Customization: | Available |
|---|---|
| After-sales Service: | Provided |
| Warranty: | 18 Months |
Shipping
| Shipping Cost: | Contact the supplier about freight and estimated delivery time. |
|---|
Payment Guarantee
| Payment Methods: |
             |
|---|---|
| Support payments in USD |
| Refund policy: | Claim a refund if your order doesn’t ship, is missing, or arrives with product issues. |
|---|
US$3,800.00-4,400.00 |
1 set (MOQ) |
Product Description
Who We Are:
Shandong HIXEN Machinery Co., Ltd is one of China leading manufacturers of mini excavators. The products has got CE approved, satisfying Euro5 and EPA Tier4 emission standard and have been supplied to over 30 countries with great reputation.
What We Offer:
1. Products of Mini Excavators from HX08 to HX35, Kubota engine are optional.
2. Pre-sale, middle-sale and after-sale all-around service.
3. Training of machine operation, daily maintenance with instruction manuals.
4. 7*24 Technical support for any trouble shooting with our machines.
5. OEM/ODM service for excavator wholesalers/trading companies/distributors/local agents.
Product Features
1. The mini excavator is equipped with top brand engine such as Yanmar or Kubota, satisfying the EURO5 and EPA Tier4 emission standard.
2. The hydraulic system adopts the load-sensitive mechanism, making each move operated smoothly with help of the branded pump.
3. With many years’ manufacturing experience, the engines and hydraulic systems are matched perfectly, so the mini excavator has enjoyed the best efficiency and performance.
4. The whole body adopts the reinforced material, making it stronger from the initial.
5. The scientifically compact design of each model, increasing its reliability while decreasing the possibilities of machine breakdown.
6. Most models are standard with hydraulic control and boom swing functions. So the mini excavators could make more moves easily at the lowest time. Also, it releases hard work of the operators.
7. With retractable undercarriage or chassis, the mini excavator could pass through the narrow space easily. Together with double speed motor, it can walk faster improving all work efficiency.
8. Standard with one backup hydraulic oil pump, so that many tools such as Hammer, Auger, Rake, Thumb, Grapple etc. could be attached to complete various jobs.
Engine : Koop,Changchai,Laidong,Xinhai,Yanmar,Kubato,Perkins
Control: Hydraulic pilot or mechanical
Cabin: Open cabin or canopy and close cabin
Track: Rubber and steel track/crawler are optional
Air Conditioner: Air conditioning system could be equipped within the enclode cabin.
Chassis: The retractable track or chassis could be choosed.
Motor: High-low two speed motor is optional
Color: Yellow,Orange,Red,Blue,Green,Black.Etc
Here we list some basic product parameters, kindly please check and select the one which suits your jobs. For more information, you can contact us immediately.
| Model | HX08 | HX10 | HX15 | HX17 |
| Total Weight | 700 kg | 950 kg | 1280 kg | 1500 kg |
| Rated Power | 8.6KW | 8.6 KW | 12KW | 20KW |
| Engine | Koop192F | Koop 192FA | Changchai | Changchai |
| Bucket Capacity | 0.02 m³ | 0.02 m³ | 0.03 m³ | 0.03 m³ |
| Maximum digging distance | 2650 mm | 2850 mm | 3370 mm | 2400 mm |
| Max. Digging Depth | 1200 mm | 1450 mm | 1600 mm | 1800 mm |
| Max. Digging Height | 2470 mm | 2580 mm | 2850 mm | 2940 mm |
| Gradeability | 30° | 30° | 30° | 30° |
| Overall Width | 720 mm | 930 mm | 1100 mm | 1100 mm |
| Model | HX18T | HX20 | HX20T | HX20U |
| Total Width | 1100 mm | 1060 mm | 1300 mm | 1200 mm |
| Crawler width | 180 mm | 230 mm | 230 mm | 230 mm |
| Engine | Kubota D1105/Laidong 385 | Kubota D1105 | Kubota D1105 | Laidong |
| Bucket Capacity | 0.04 m³ | 0.06 m³ | 0.06 m³ | 0.06m³ |
| Swing angle | 360° | 360° | 360° | 360° |
| Max. Digging Depth | 2100 mm | 2050 mm | 2400 mm | 2240 mm |
| Max. Digging Height | 2700 mm | 3365 mm | 3700 mm | 3550 mm |
| Max. Digging Radius | 2990 mm | 3860 mm | 4040 mm | 3780 mm |
| Max. Dumping Height | 1500 mm | 2385 mm | 2440 mm | 2450 mm |
| Model | HX22 | HX30 | HX35 | HX40 |
| Total Width | 1200 mm | 1350 mm | 1500 mm | 1720 mm |
| Crawler width | 230 mm | 230 mm | 230 mm | 300 mm |
| Engine | Kubota/Laidong | Kubota/Xinchai/Changchai | Kubota/xinchai/Changchai | Kubota D1703 |
| Bucket Capacity | 0.06 m³ | 0.1 m³ | 0.1 m³ | 0.12 m³ |
| Swing angle | 360° | 360° | 360° | 360° |
| Max. Digging Depth | 2240 mm | 2500 mm | 2500 mm | 3208 mm |
| Max. Digging Height | 3550 mm | 3900 mm | 3900 mm | 4800 mm |
| Max. Digging Radius | 4050 mm | 4040 mm | 4040 mm | 5359 mm |
| Max. Dumping Height | 2450 mm | 2600 mm | 2600 mm | 3406 mm |
Mini Excavators are equipped with a backup hydraulic pipeline, with which a lot of tools could be attached to fulfill a wide range of works. That include but not limited as: Pavement Breaking, Trees Planting, Pipeline Installation, Trenches Digging, Tunnel Excavation, Building Foundations, Indoor Breaking, Farmland Clearing, Foundation Digging, Cable Landfill, etc.
Related products
-
Hot Sale China Factory Price Crawler Digger Excavator Multi Purpose Mini Tractor Excavator with Versatile Attachment 0.8ton Machine Farm and Construction Use
-
Multi-Functional Agri Mini Excavator with Hydraulic System for Farm and Gardening
-

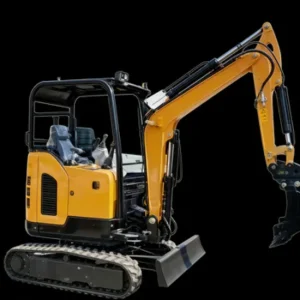

Hot Selling 2.5 Ton Mini Hydraulic Excavator with CE EPA Certification Imported Hydraulic Parts Easy Maintenance Ideal for Urban Construction Greening and Farm
-
