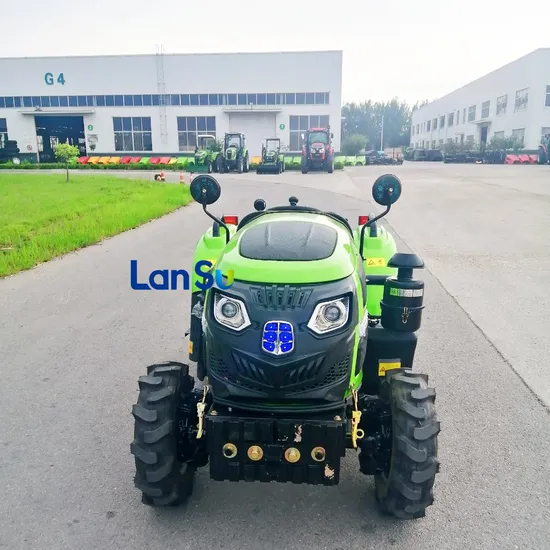

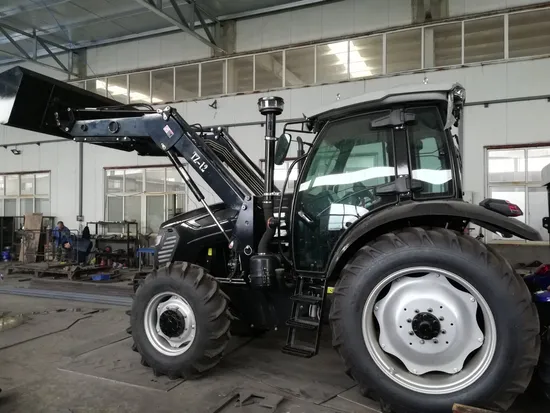

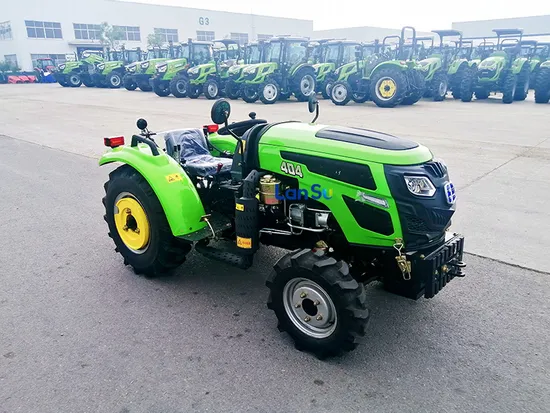

4WD Small Compact Garden Cheap Wheel Mini Farm Tractor with Front End Loader and Backhoe Price List for Sale

US$3,200.00-4,500.00

1 Piece (MOQ)

Product Details

Customization:	Available
Certification:	CE
Start:	Electric Start

Product Description

Sales rank:China’s top three.

Sample: Support sample order.

OEM: Support technical changes.

Free train: plant training on installation and maintenance techniques.

QC: Quality inspection before delivery for each unit.

Our have multiple models Four wheel tractor of power.#12HP #15HP #18HP #20HP #22HP #25HP #28HP #30HP #35HP #40HP #45HP #50HP #60HP #70HP.

Farm tractor diesel engine has simple and compact structure, manipulate, light weight, can be widely used for various field. like small farmland, vineyards, flower garden, greenhouse particularly ideal for mountainous field.

MODEL			LS-Mini tractor 12hp
Engine	Model		195
	Type		1cylinder,4-stroke,horizontal,water-cooled,diesel
	Cooling Mode		Condenser (Radiator)
	Power		12hp
	Combustion System		Direct Injection
	Cylinder Bore		92mm
	Piston Stroke		95mm
	Compression Ratio		18:01
	Rated Speed		2400rpm
	Fuel Efficiency:		≤257gl/kw.hr
	Displacement		0.632
	Fuel Tank Capacity		8L
	Water Tank Capacity		2L
	Net Weight		112kg
	Gross Weight		122
Overall dimensions:(L×W×H)			2140×905×1175mm Without tiller
Overall dimensions:(L×W×H)			2600×1000×1175mm With tiller
Front wheel size			5.00-12
Back wheel size			7.50-16
Ground clearance			180mm
Working weight			490kg
Transmission style			Belt transmission
Steering style			Steering wheel power steering system
Brakes			Two side wheel brake
Starter			Electric start/Hand crank
Seat			Adjustable
Gear style			(3+1)*2; 6 Forward, 2 Reverse
Speed		Forward	1.68, 2.61, 4.22, 6.79, 10.57, 17.08
		Reverse	1.29, 5.22
Rotary tiller		Transmission Type	Middle Gears Transmission, or side gears transmission
		Width	1000mm Adjustable
		Number of blades	18-20pcs
		Working depth	150-250mm
		Up and down control	Hydraulic system

Model	LS-Small tractor 25hp
Wheel drive	4×2
Dimensions	2700×1400×1400
Weight(kg)	950-1010
Front wheel(mm)	900,1000,1100,1200 adjustable
Rear wheel(mm)	960,1000,1100,1200,1300 adjustable
Wheel base(mm)	1400
Min. ground distance(mm)	350
Gear shift	6+1
Tyre size	9.5-20/500-14
ENGINE Type
Rated power(kW)	18.32kw
Rated speed (r/min)	Water cooled,vertical,4 stoke and direct injection
Start	Electric
Transmission	2200
Clutch	single ,dry friction, single clutch
Connection/PTO	3×2+1

	3 point suspension/ Rear P.T.O 540

MODEL	LS- Middle tractor 50hp
Horsepower&Drive Type	50hp, 4×4
ENGINE
Engine Model	50HP
Type	Vertical, Water-Cooled, Four Strokes, Direct in Injection
Rated Output(kW)	36.8
TRACTOR PARAMETER
Dimension LWH (mm)	355815002245
Wheel Base (mm)	1900
Wheel Tread F/R(mm)	1060/1100
Min Ground Clearance(mm)	300
TRANSMISSION
Gear Shift	8F+2R
Clutch Type	Dry Single-stage
RUNNING SYSTEM
Tire F/R	650-16/11.2-24
Steering	Hydraulic Steering
Brake	Toe Type
Park Brake	Latch Pedal
WORKING SYSTEM
Hitch	Partial Separated Type, 3-Point hydraulic hitch,Category 1
Max. Lift Force(N)	≥6300
Rear PTO	Rear Rectangle Spline, 6 Teeth, 540/720rpm

Farming tools for Farm tractor
Farm tractor is a all-powerful agricultural machinery.lt can help farmers land consolidation (plought,rotary tillaqe, scarification,ditching,ridqing, earth up,grass mower Paddy field beating etc).
Crop planting and seeders (wheat, , corn, soybean seed, peanut, planting potatoes, vegetables eto Harvest (rice, wheat harvest, corn , peanut, potatoes, sweet potato Onions, ginger, qarlic).
The other management of land, water, spray, fertilization, paddy field operation etc).

Category: Tiller
